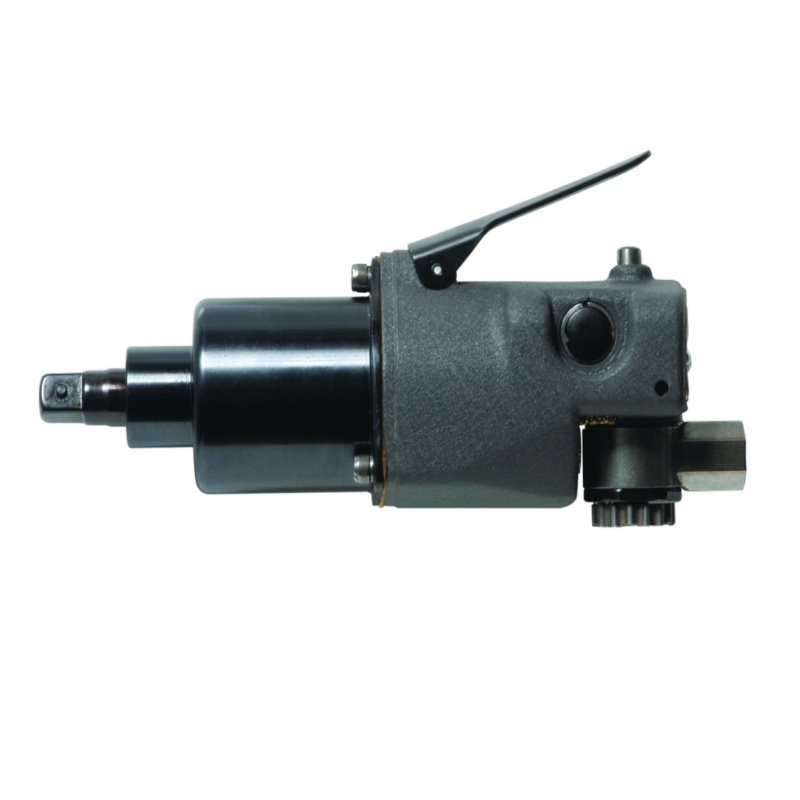

1702 Series Air Impact Wrench

1702 Series Air Impact Wrench

The 1702 Series Impact Wrenchs steel hammer case and metal housing ensure a tough, durable tool thatll help you breeze through any job without having to worry about your tools giving up.

  • Número de artículo :

    1702 Series Air Impact Wrench
  • Pedido (MOQ) :

    1PC
  • Pago :

    T/T
  • Origen del producto :

    China
  • Color :

    Black
  • Puerto de embarque :

    Xiamen
  • Plazo de entrega :

    15days

The 1702 Series Impact Wrenchs steel hammer case and metal housing ensure a tough, durable tool thatll help you breeze through any job without having to worry about your tools giving up.

Features

Power



With a jumbo hammer impact mechanism and power regulation, the 1702 Series is powerful and easy to control.



Different Handle Configurations



Featuring both trigger and lever actuation, this impact wrench is available in both pistol and D-handle configurations to make it easier for all applications.



Reliable



No matter how often you use it, the 1702 Series Impact Wrench will deliver the same high-quality output every time.



Model Configuration Actuation Drive Size Drive Type Forward Torque (ft-lbs) Forward Torque (Nm) Max Reverse Torque (ft-lbs) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Impacting Sound Level dB(A) -- ISO15744 (pressure/power) Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power) Vibration Level m/s2 (K) Weight (lbs) Weight (kg) Width (in) Width (mm) Length (in) Length (mm) Air Inlet Min Hose Size (in) Min Hose Size (mm) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min) PSI Bar
1702P1 Pistol Trigger 3/8 in. Square, Pin 100 136 125 170 1500 10000 92.2 / 103.2 96.0 / 107.0 6.5 (1.0) 2.75 1.25 2.8 71 5.5 140 1/4 in. 5/16 8 15 425 N/A N/A 90 6.2
1702P4 Pistol Trigger 1/4 in. Hex, Quick Change, Sleeve 100 136 125 170 1500 10000 92.2 / 103.2 96.0 / 107.0 6.5 (1.0) 2.75 1.25 2.8 71 5.5 140 1/4 in. 5/16 8 15 425 N/A N/A 90 6.2
1702SB1 Straight Lever 3/8 in. Square, Pin 85 115 105 142 1500 10000 86.8 / 97.8 83.6 / 94.6 8.1 (2.2) 2.5 1.12 2 50 5.88 149 1/4 in. 5/16 8 13 368 N/A N/A 90 6.2
