2235TiMAX Visibility Series 1/2" Drive Air Impact Wrenches
2235TiMAX Visibility Series 1/2" Drive Air Impact Wrenches
2235TiMAX Visibility Series 1/2" Drive Air Impact Wrenches

2235TiMAX Visibility Series 1/2" Drive Air Impact Wrenches

The Ingersoll Rand® 2235TiMAX Visibility Series provide all the power you know and trust in all new colors:

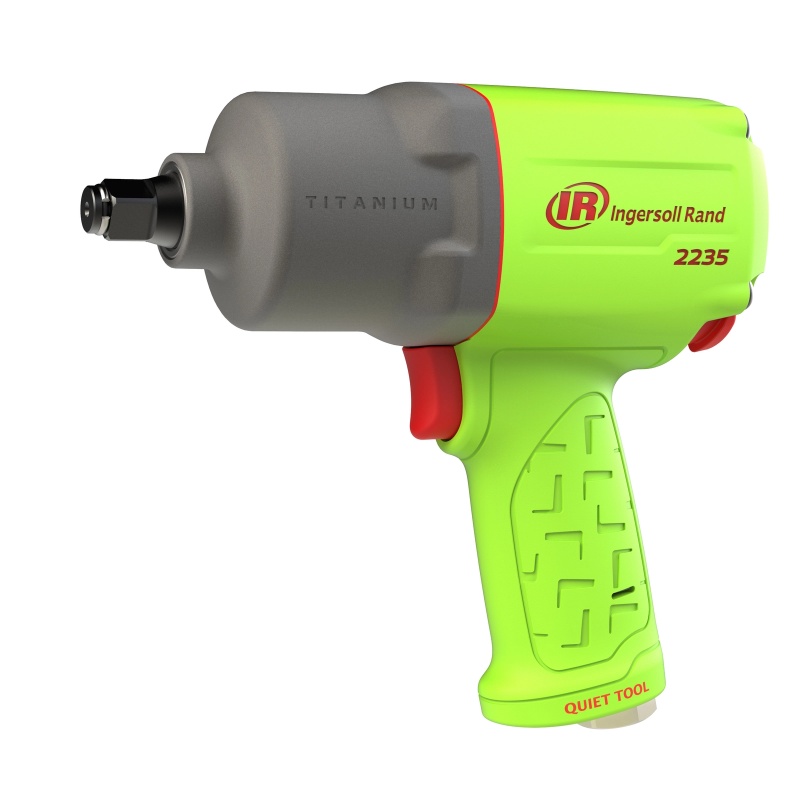

2235TiMAX-G (green)

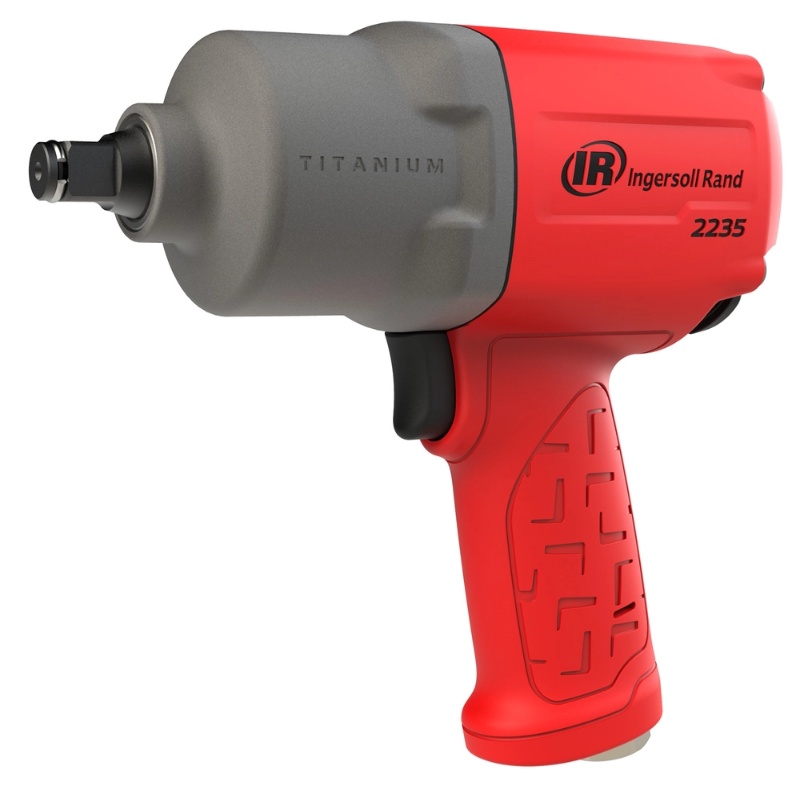

2235TiMAX-R (red)

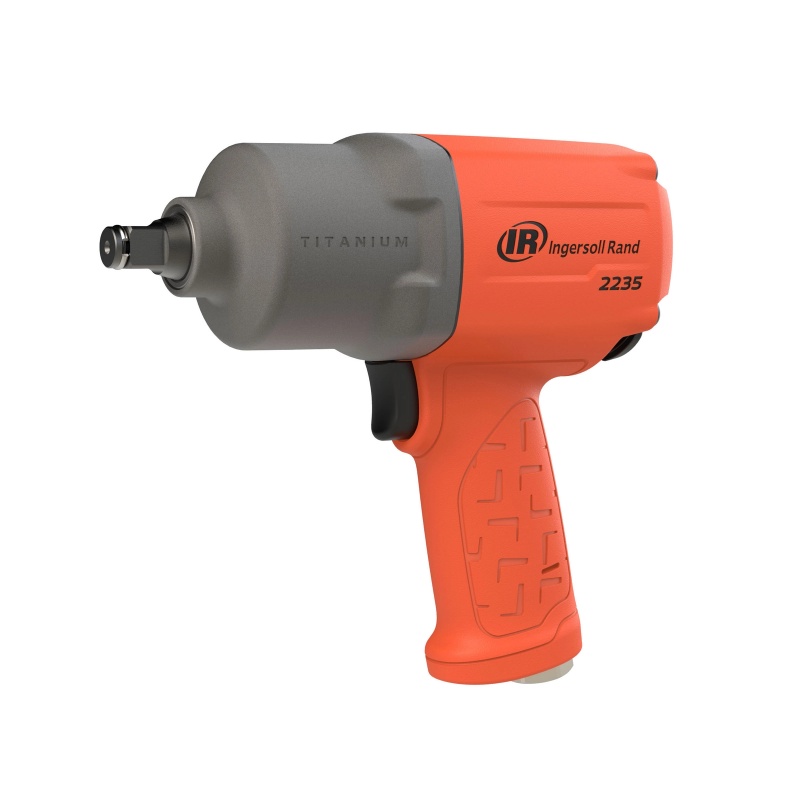

2235TiMAX-O (orange)

The power, durability and reliability of these 1/2" Air Impact Wrench is unsurpassed in the industrial and vehicle service market. Now available in green, red and orange for technicians who want to customize their toolbox and have visibility to their tool on the job and in the garage.

  • Número de artículo :

    2235TiMAX Visibility Series 1/2" Drive Air Impact Wrenches
  • Pedido (MOQ) :

    1PC
  • Pago :

    T/T
  • Origen del producto :

    China
  • Color :

    Green/Red/Orange
  • Puerto de embarque :

    Xiamen
  • Plazo de entrega :

    15days

The Ingersoll Rand® 2235TiMAX Visibility Series provide all the power you know and trust in all new colors:



2235TiMAX-G (green)

2235TiMAX-R (red)

2235TiMAX-O (orange)

The power, durability and reliability of these 1/2" Air Impact Wrench is unsurpassed in the industrial and vehicle service market. Now available in green, red and orange for technicians who want to customize their toolbox and have visibility to their tool on the job and in the garage.



Features

Available in Multiple Colors:

The 2235TiMAX-G (green), 2235TiMAX-R (red), and 2235TiMAX-O (orange) impact wrenches allow you to see it on the job and in the garage, while customizing your toolbox.

Power:

Punish the toughest bolts with 1,350 ft-lbs. of Nut Busting Torque powered by Ingersoll Rands finely tuned twin-hammer impact mechanism. The 4-position power regulator and one-handed forward/reverse push button control give you the control to do the job right the first time.

Reliability:

Every component, every mechanism and every function of 2235TiMAX Visibility Series air impact wrenches have been put through the most rigorous testing to ensure it always performs in the face of the toughest applications. Backed by a two-year warranty, 2235TiMAX Visibility Series impact guns are finely tuned workhorses.



Model

Configuration

Actuation

Drive Size

Drive Type

Nut-Busting Torque (ft-lbs)

Nut-Busting Torque (Nm)

Forward Torque (ft-lbs)

Forward Torque (Nm)

Max Reverse Torque (ft-lbs)

Max Reverse Torque (Nm)

Blows per minute

Free Speed (RPM)

Impacting Sound Level dB(A) -- ISO15744 (pressure/power)

Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)

Vibration Level m/s2 (K)

Weight (lbs)

Weight (kg)

Width (in)

Width (mm)

Height (in)

Height (mm)

Length (in)

Length (mm)

Air Inlet

Min Hose Size (in)

Min Hose Size (mm)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

PSI

Bar

2235QTiMAX-G

Pistol

Trigger

1/2 in.

Square, Hog-Ring

1300

1760

870

1180

900

1220

1220

8500

88.7 / 99.7

91.9 / 102.9

9 (2.8)

4.6

2.1

2.9

74

7.2

183

7.6

193

1/4 in.

3/8

10

24

680

6

170

90

6.2
