BM-L/BM-LP Numerical Control Brushless Charging Torque Wrench

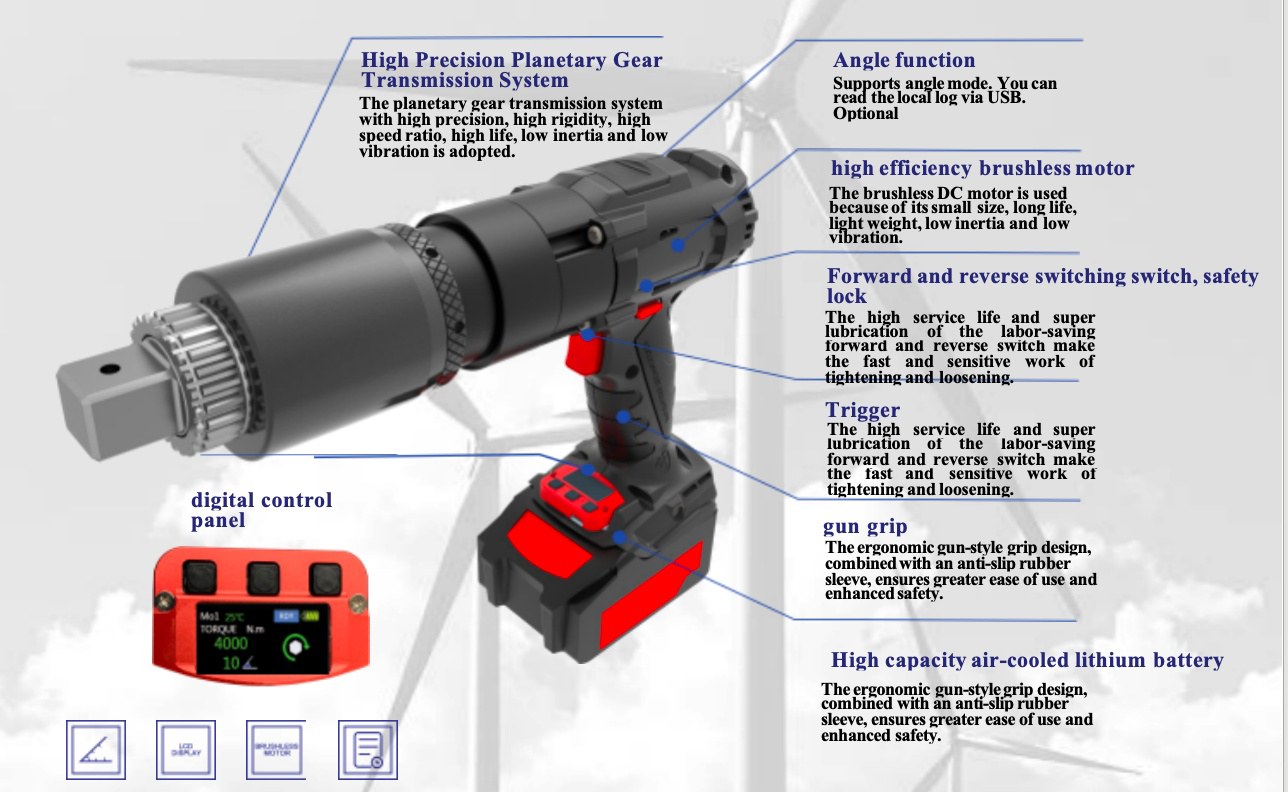

The BM-L/BM-LP series represents the latest generation of brushless torque wrenches for small-screen charging. Featuring cutting-edge brushless motors, this series eliminates carbon brushes, requiring zero maintenance and offering exceptional durability. It operates instantly on standard power supply while meeting stringent requirements for high precision, robust performance, and safety. The series utilizes a high-precision planetary gear transmission system with an output ratio of 1:1.0. Equipped with high-capacity air-cooled batteries and fast-charging technology, it delivers ±5% accuracy.

BM-LH/BM-LPH, with the planetary gear system with automatic transmission clutch, the no-load speed is 4-6 times of the standard model.

Número de artículo :
BM-L/BM-LP Numerical Control Brushless Charging Torque Wrench
Pedido (MOQ) :
1PC
Pago :
T/T
Origen del producto :
China
Color :
Black
Puerto de embarque :
Xiamen
Plazo de entrega :
15days

CONSULTE AHORA

Detalles del producto

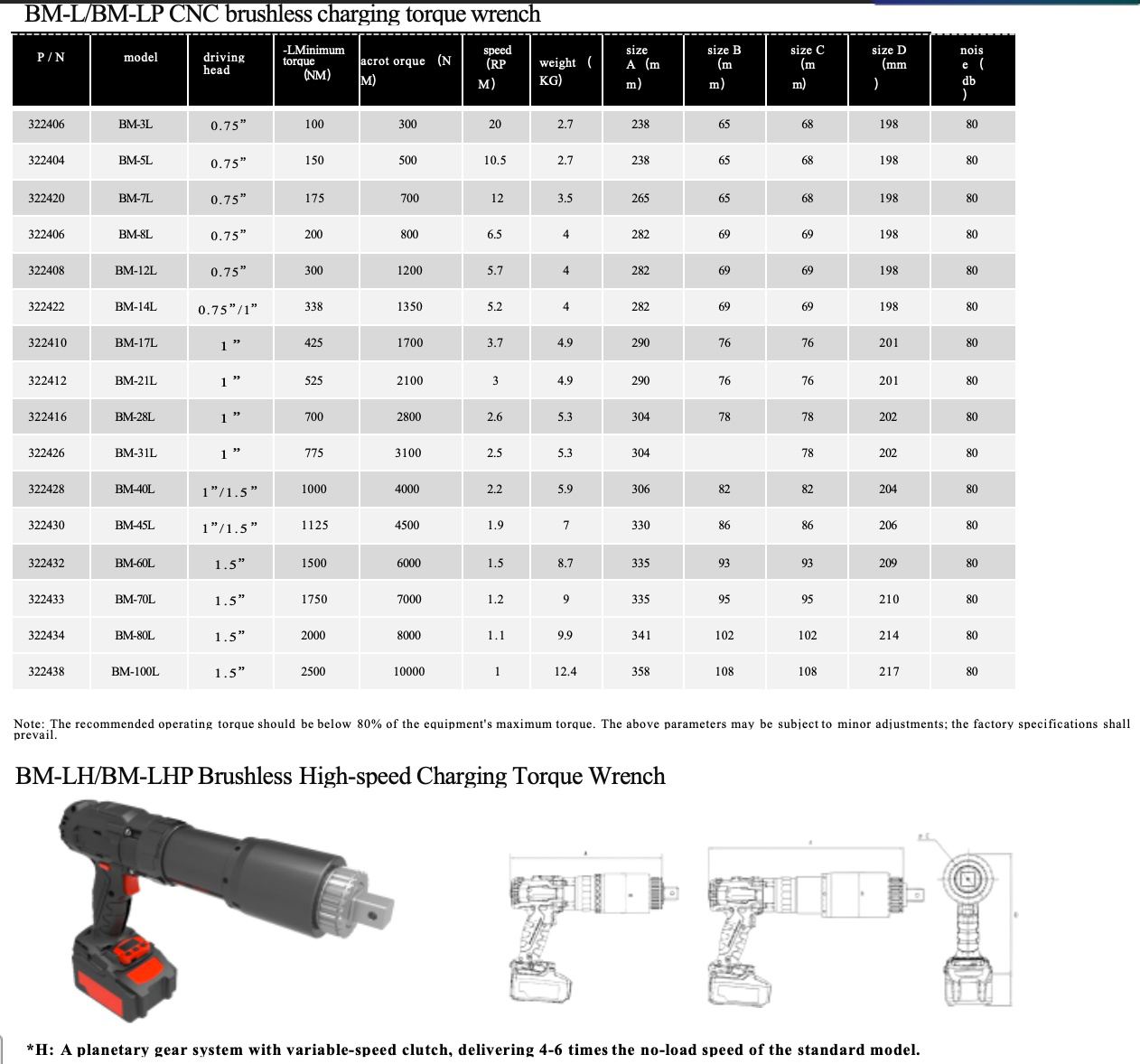

Model Specifications

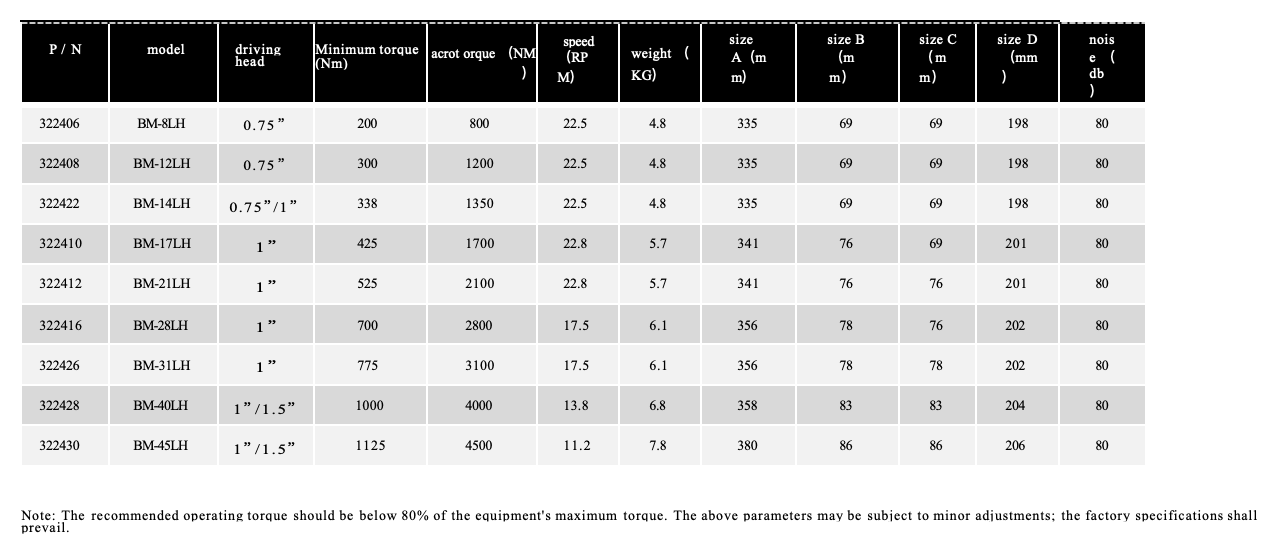

BM-LH/BM-LPH, with the planetary gear system with automatic transmission clutch, the no-load speed is 4-6 times of the standard model.

0.96-inch LCD display

The brushless motor eliminates the need for carbon brush replacement

Digital adjustment and display of torque and wrench working status parameters

Multi-mode adjustment, torque digital adjustment, or torque adjustment in 1 to 99 gear positions

Programmable preset for 10 common output torque or gear positions

Any torque value can be set within the torque range.

High reliability and stability with multi-pole gearbox

User (operator, administrator) level management

The buzzer indicates suitability for factory environments.

Tighten the result simulation judgment follow function

Background torque calibration software compensation function

Anti-reaction force arm locking to achieve unloading function

Overheating temperature monitoring function of wrench

Battery power monitoring and compensation

torque overload limit function

High-capacity air-cooled battery, fast-charging charger

Accuracy ±5%, repeatability ±2%, -TC accuracy ±3%

Supports larger-capacity air-cooled lithium batteries with capacities of 5.2/8.0AH

Standard compliant standard counterweight arm, customizable counterweight arm available

Supports the installation of hoisting systems for safer high-altitude operations

Supports local log and USB log reading*-P

*H: High-speed system-a planetary gear system with variable-speed clutch function, some models support
