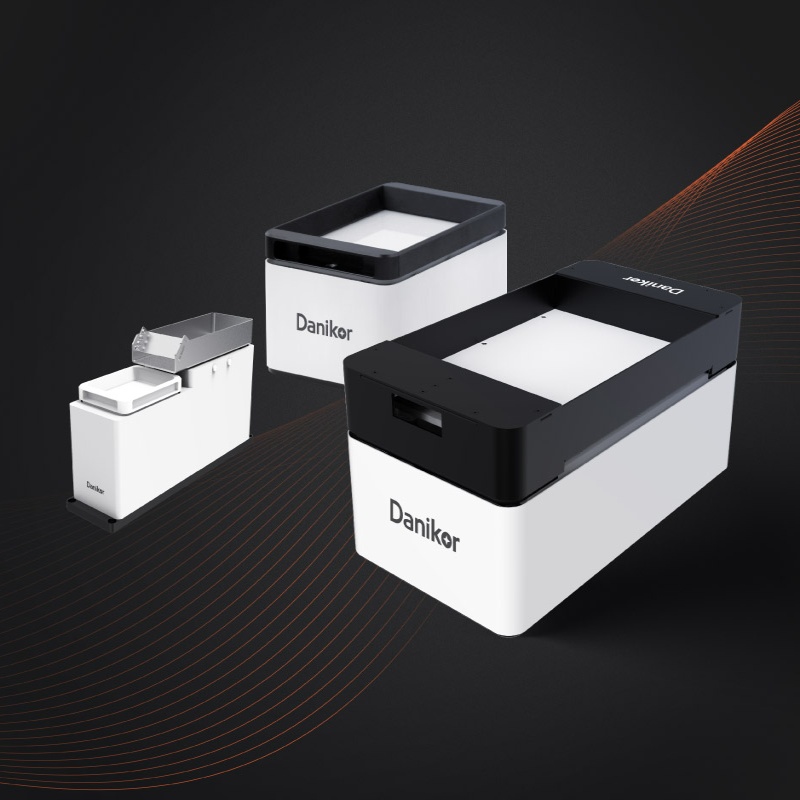

Flex Feeder Suitable Material Size:0.1-170mm

Danikor's flex feeder provides flexible parts feeding for any automated application featuring varied parts and frequent changeovers. One flex feeder can replace several conventional feeders on your line. It holds components of arbitrary shapes and materials. Visual part recognition frees you from the limits of mechanical feeding, speeding up configuration and eliminating the need for manual feeder calibration. flex feeder is suitable for all robots automated assembly applications in the automotive, cosmetic, electronic, and medical industries.

Número de artículo :
Flex Feeder
Pedido (MOQ) :
1PC
Pago :
T/T
Origen del producto :
China
Color :
Withe And Black
Puerto de embarque :
Xiamen
Plazo de entrega :
15days
Peso :
4kg

CONSULTE AHORA

Detalles del producto
Model Specifications

Product Advantages

Diversity & compatibility

► Applicable to a variety of complex special-shaped materials.

Plate customization

► stomize different type plate for different type materials.

Flexible

► Suit for multi variety material and can change material easily Material clearing function is optional choose.

High "screen ratio"

► Smaller floor area and large usable area of the plate surface.

Vibration isolation

► Avoid mechanical vibration interference and improve working cycle time.

Model		MTS-U10	MTS-U15	MTS-U20	MTS-U25	MTS-U30	MTS-U35	MTS-U45	MTS-U60
Dimension (LWH)（mm）		32182160	360105176	219143116.5	262180121.5	298203126.5	426.2229184.5	506.2274206.5	626.2364206.5
Pick window (length by width)（mm）		806015	1209015	16812220	21115925	24718230	28022540	36027050	48036050
Weight/Kg		about 5kg	about 6.5kg	about 2.9kg	about 4kg	about 7.5kg	about 11kg	about 14.5kg	about 21.5kg
Voltage		DC 24V
Maximum current		5A					10A
Movement Type		Move back and forth/side to side,Flip,Center(Long side),Center(Short side)
Operating frequency		30~65Hz		30~55Hz			20~40Hz
Sound Level		<70dB（without collision sound)
Permissible load		0.5kg					1kg	1.5kg	2kg
Maximum part weight		≤ 15g					≤ 50g
Signal interaction	PC	TCP/IP
	PLC	I/O
	DK Hopper	/		RS485
	Other Hopper	/		I/O
