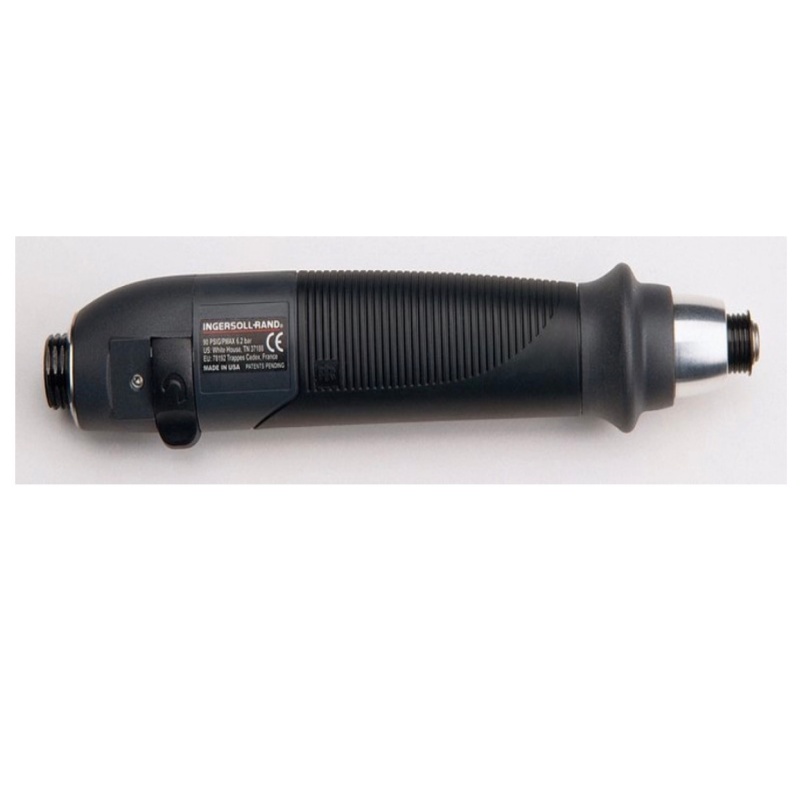

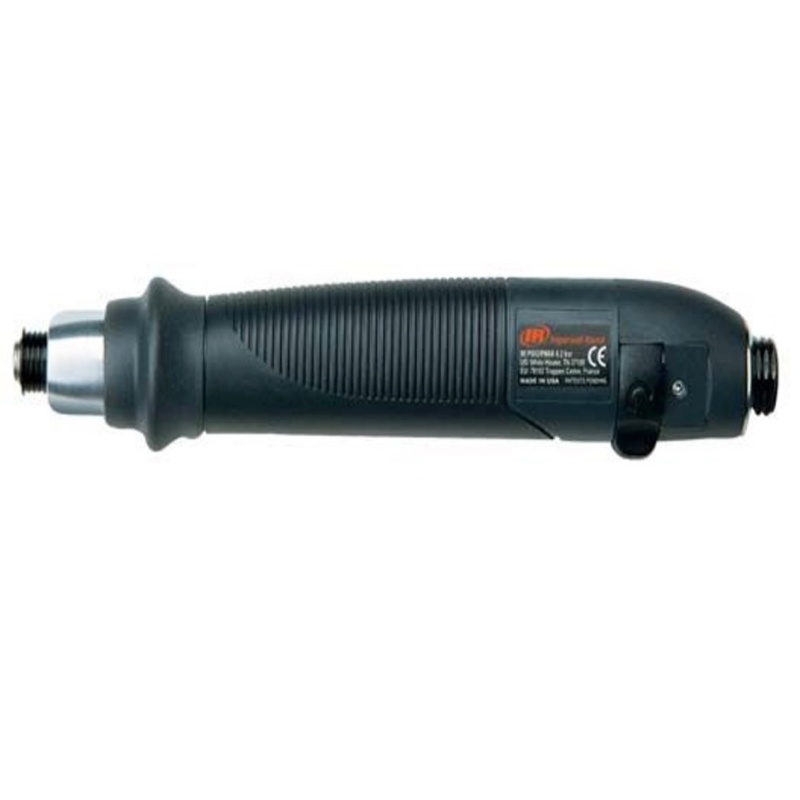

Q2 Series Inline Adjustable Cushion Clutch Air Screwdriver
Q2 Series Inline Adjustable Cushion Clutch Air Screwdriver

Q2 Series Inline Adjustable Cushion Clutch Air Screwdriver

The Q2 Series Inline Adjustable Cushion Clutch screwdriver provides smooth disengaging at preset torque while minimizing vibration to the operator. And with skinsulate housing and an optimized design, this series is great to use in any application.



  • Número de artículo :

    Q2 Series Inline Adjustable Cushion Clutch Air Screwdriver
  • Pedido (MOQ) :

    1PC
  • Pago :

    T/T
  • Origen del producto :

    China
  • Color :

    Black
  • Puerto de embarque :

    Xiamen
  • Plazo de entrega :

    15days

The Q2 Series Inline Adjustable Cushion Clutch screwdriver provides smooth disengaging at preset torque while minimizing vibration to the operator. And with skinsulate housing and an optimized design, this series is great to use in any application.

Features

User Experience:



This series is compact, well-balanced and lightweight, and has an egg-shaped housing designed for a natural fit and maximum operator comfort.

Speed:



This tools high speed allows you to finish any job quickly and easily.

Durable:



These screwdrivers will perform cycle after cycle. Theyre tools you can trust.

Performance:



With the speed, accuracy and reliability of these screwdrivers, youll be able to work without worrying about your end product.



Model Actuation Torque Range (Nm) Torque Range (in-lbs) Free Speed (rpm) Weight (kg) Weight (lb.) Length (mm) Length (in) Side to Center Distance (mm) Side to Center Distance (in) Spindle Type Sound Level dB(A) @ Free Speed Inlet Location Air Inlet (NPTF/NPT) CFM
QS1L05C1D Lever Start 0.3 - 5.4 3.0 - 47.8 500 0.7 1.5 241 9.5 22 0.9 1/4 in. Hex Quick Change 75 Std 1/4 in. NPT 16
QS1L10C1D Lever Start 0.3 - 4.5 3.0 - 40.0 1000 0.7 1.5 241 9.5 22 0.9 1/4 in. Hex Quick Change 75 Std 1/4 in. NPT 16
QS1L20C1D Lever Start 0.3 - 2.5 3.0 - 22.1 2000 0.7 1.5 241 9.5 22 0.9 1/4 in. Hex Quick Change 75 Std 1/4 in. NPT 16
QS1P05C1D Push to Start 0.3 - 5.4 3.0 - 47.8 500 0.6 1.4 223 8.8 22 0.9 1/4 in. Hex Quick Change 75 Std 1/4 in. NPT 16
QS1P10C1D Push to Start 0.3 - 4.5 3.0 -40.0 1000 0.6 1.4 223 8.8 22 0.9 1/4 in. Hex Quick Change 75 Std 1/4 in. NPT 16
QS1P20C1D Push to Start 0.3 - 2.5 3.0 - 22.1 2000 0.6 1.4 223 8.8 22 0.9 1/4 in. Hex Quick Change 75 Std 1/4 in. NPT 16
QS1T10C1D Lever + Push to Start 0.3 - 4.5 3.0 - 40.0 1000 0.69 1.53 241 9.5 22 0.87 1/4 in. Hex Quick Change 75 Std 1/4 in. NPT 16
QS1T20C1D Lever + Push to Start 0.3 - 2.5 3.0 - 22.1 2000 0.69 1.53 241 9.5 22 0.87 1/4 in. Hex Quick Change 75 Std 1/4 in. NPT 16
