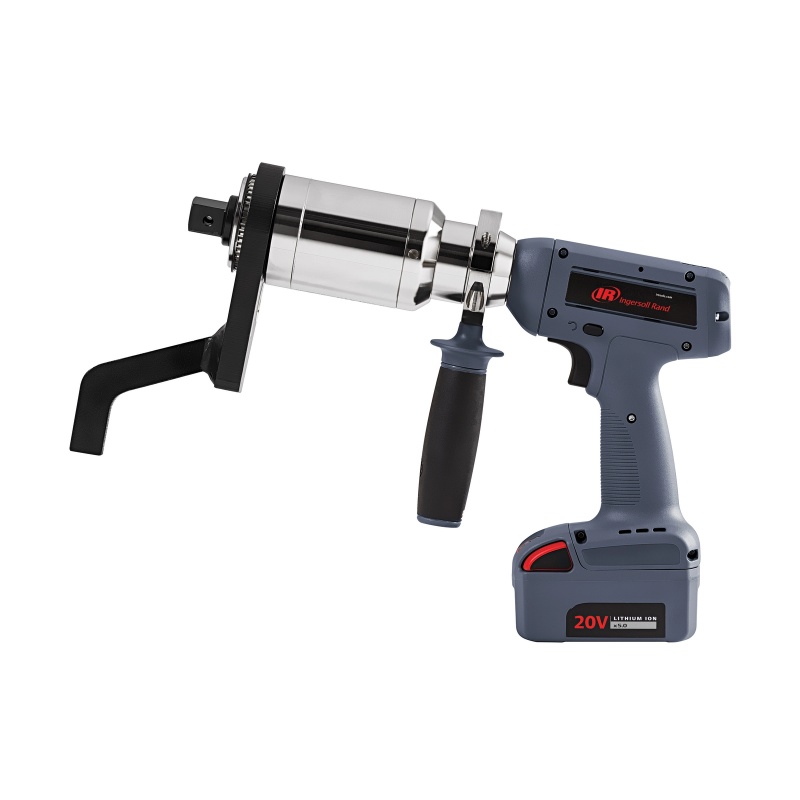

QX Series™ 20V Cordless Torque Multiplier
QX Series™ 20V Cordless Torque Multiplier

QX Series™ 20V Cordless Torque Multiplier

The innovative QX Series Cordless Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity.

  • Número de artículo :

    QX Series™ 20V Cordless Torque Multiplier
  • Pedido (MOQ) :

    1PC
  • Pago :

    T/T
  • Origen del producto :

    China
  • Color :

    Black
  • Puerto de embarque :

    Xiamen
  • Plazo de entrega :

    15days

The innovative QX Series Cordless Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity.



Features

Closed-loop transducer delivers a torque accuracy of +/- 5%

Enhanced quantitative feedback – displaying the actual measured torque or angle result

Integrated gearbox provides premium quality and accuracy

Brushless Motor offers maximum durability

Intuitive qualitative feedback using green, red, and yellow indicators

360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options

Standard or custom reaction arms available to match your application needs

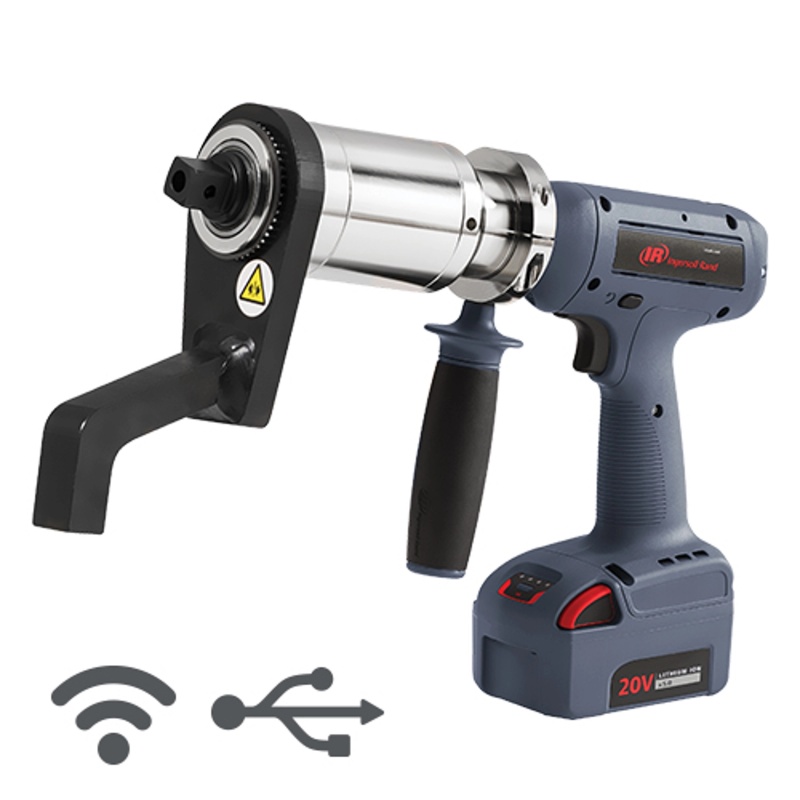

Optional wireless communication for process control with I/O and data collections (USB connection standard)

Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On-Board Tool Display/Key.



Model

Item

Torque (ft-lb)

Torque (Nm)

RPM

Weight (lb)

Weight (kg)

Length (in)

Length (mm)

Width (in)

Width (mm)

Drive Size (in)

Voltage

Communication

QXC2PT200NPS12

Bare Tool

30 - 148

40 - 200

43

8

3.62

14.69

373

2.2

56

3/4

20V

Via USB Cable Only

QXC2PT500NPS12

Bare Tool

74 - 369

100 - 500

15

8

3.62

14.69

373

2.2

56

3/4

20V

Via USB Cable Only

QXC2PT1000NPS12

Bare Tool

148 - 738

200 - 1000

8

12

5.44

16.5

419

3.14

80

3/4

20V

Via USB Cable Only

QXC2PT1350NPS16

Bare Tool

200 - 996

270 - 1350

6

12

5.44

16.5

419

3.14

80

1

20V

Via USB Cable Only

QXC2PT2000NPS16

Bare Tool

295 - 1475

400 - 2000

4

15

6.8

17.8

452

3.14

80

1

20V

Via USB Cable Only

QXX2PT200NPS12

Bare Tool

30 - 148

40 - 200

43

8

3.62

14.69

373

2.2

56

3/4

20V

Wireless Enabled

QXX2PT500NPS12

Bare Tool

74 - 369

100 - 500

15

8

3.62

14.69

373

2.2

56

3/4

20V

Wireless Enabled

QXX2PT1000NPS12

Bare Tool

148 - 738

200 - 1000

8

12

5.44

16.5

419

3.14

80

3/4

20V

Wireless Enabled

QXX2PT1350NPS16

Bare Tool

200 - 996

270 - 1350

6

12

5.44

16.5

419

3.14

80

1

20V

Wireless Enabled

QXX2PT2000NPS16

Bare Tool

295 - 1475

400 - 2000

4

15

6.8

17.8

452

3.14

80

1

20V

Wireless Enabled

QXC2P200PS12K2

Kit

30 - 148

40 - 200

43

8

3.62

14.69

373

2.2

56

3/4

20V

Via USB Cable Only

QXC2P500PS12K2

Kit

74 - 369

100 - 500

15

8

3.62

14.69

373

2.2

56

3/4

20V

Via USB Cable Only

QXC2P1000PS12K2

Kit

148 - 738

200 - 1000

8

12

5.44

16.5

419

3.14

80

3/4

20V

Via USB Cable Only

QXC2P1350PS16K2

Kit

200 - 996

270 - 1350

6

12

5.44

16.5

419

3.14

80

1

20V

Via USB Cable Only

QXC2P2000PS16K2

Kit

295 - 1475

400 - 2000

4

15

6.8

17.8

452

3.14

80

1

20V

Via USB Cable Only

QXX2P200PS12K2

Kit

30 - 148

40 - 200

43

8

3.62

14.69

373

2.2

56

3/4

20V

Wireless Enabled

QXX2P500PS12K2

Kit

74 - 369

100 - 500

15

8

3.62

14.69

373

2.2

56

3/4

20V

Wireless Enabled

QXX2P1000PS12K2

Kit

148 - 738

200 - 1000

8

12

5.44

16.5

419

3.14

80

3/4

20V

Wireless Enabled

QXX2P1350PS16K2

Kit

200 - 996

270 - 1350

6

12

5.44

16.5

419

3.14

80

1

20V

Wireless Enabled

QXX2P2000PS16K2

Kit

295 - 1475

400 - 2000

4

15

6.8

17.8

452

3.14

80

1

20V

Wireless Enabled

QXC2PT200VNPS12

Haz Tool

30 - 148

40 - 200

43

8

3.62

14.69

373

2.2

56

3/4

20V

Via USB Cable Only

QXC2PT500VNPS12

Haz Tool

74 - 369

100 - 500

15

8

3.62

14.69

373

2.2

56

3/4

20V

Via USB Cable Only

QXC2PT1000VNPS12

Haz Tool

148 - 738

200 - 1000

8

12

5.44

16.5

419

3.14

80

3/4

20V

Via USB Cable Only

QXC2PT1350VNPS16

Haz Tool

200 - 996

270 - 1350

6

12

5.44

16.5

419

3.14

80

1

20V

Via USB Cable Only

QXC2PT2000VNPS16

Haz Tool

295 - 1475

400 - 2000

4

15

6.8

17.8

452

3.14

80

1

20V

Via USB Cable Only

QXX2PT200VNPS12

Haz Tool

30 - 148

40 - 200

43

8

3.62

14.69

373

2.2

56

3/4

20V

Wireless Enabled

QXX2PT500VNPS12

Haz Tool

74 - 369

100 - 500

15

8

3.62

14.69

373

2.2

56

3/4

20V

Wireless Enabled

QXX2PT1000VNPS16

Haz Tool

148 - 738

200 - 1000

8

12

5.44

16.5

419

3.14

80

3/4

20V

Wireless Enabled

QXX2PT1350VNPS16

Haz Tool

200 - 996

270 - 1350

6

12

5.44

16.5

419

3.14

80

1

20V

Wireless Enabled

QXX2PT2000VNPS16

Haz Tool

295 - 1475

400 - 2000

4

15

6.8

17.8

452

3.14

80

1

20V

Wireless Enabled
